Electronic components Linear Voltage Regulator IC Positive Adjustable 1 Output 400mA D2PAK-5 IC NCV4276BDSADJR4G

Brand Name : Onsemi

Model Number : NCV4276BDSADJR4G

Place of Origin : Malaysia

MOQ : 10pieces

Price : US$1.20/PC

Payment Terms : T/T, Western Union

Supply Ability : 50000PCS

Delivery Time : 5 working days

Packaging Details : Reel

Category : Electronic components-Integrated circuits

Series : PMIC - Voltage Regulators - Linear

Protection Features : Over Temperature, Reverse Polarity, Short Circuit

Mounting Type : Surface Mount

Description : 400 mA Low‐Drop Voltage Regulator IC

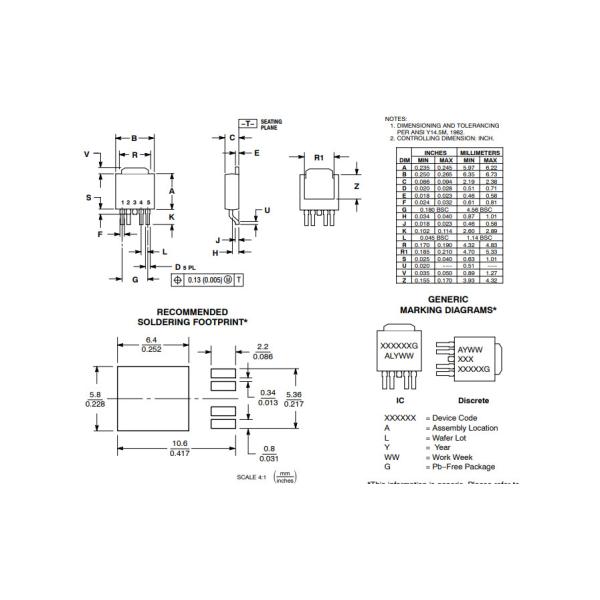

Package : D2PAK-5/TO263

Operating Temperature : -40°C ~ 125°C

Output Configuration : Positive

Stock : In Stock

Contact Now

High quality Electronic components Linear Voltage Regulator IC Positive Adjustable 1 Output 400mA D2PAK-5 cms-photo-disclaimer IC NCV4276BDSADJR4G

Features:

►3.3 V, 5.0 V, and Adjustable Voltage Version (from 2.5 V to 20 V) ±2% Output Voltage

►400 mA Output Current

►500 mV (max) Dropout Voltage (5.0 V Output) Inhibit Input

►Very Low Current Consumption

►Fault Protection

►+45 V Peak Transient Voltage

►−42 V Reverse Voltage

►Short Circuit

► Thermal Overload

► NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements

►These are Pb-Free Devices

Descriptions:

The NCV4276B is a 400 mA output current integrated low dropout regulator family designed for use in harsh automotive environments. It includes wide operating temperature and input voltage ranges. The device is offered with 3.3 V, 5.0 V, and adjustable voltage versions available in 2% output voltage accuracy. It has a high peak input voltage tolerance and reverse input voltage protection. It also provides overcurrent protection, overtemperature protection and inhibit for control of the state of the output voltage. The NCV4276B family is available in DPAK and D2PAK surface mount packages. The output is stable over a wide output capacitance and ESR range. The NCV4276B has improved startup behavior during input voltage transients.

Category
Integrated Circuits (ICs)
Family
PMIC - Voltage Regulators - Linear
Mfr
onsemi
Series
Automotive, AEC-Q100
Package
Tape & Reel (TR)
Output Configuration
Positive
Output Type
Adjustable
Number of Regulators
1
Voltage - Input (Max)
45V
Voltage - Output (Min/Fixed)
2.5V
Voltage - Output (Max)
20V
Voltage Dropout (Max)
0.5V @ 250mA
Current - Output
400mA
Current - Quiescent (Iq)
200 µA
Current - Supply (Max)
35 mA
PSRR
70dB (100Hz)
Control Features
Enable
Protection Features
Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature
-40°C ~ 150°C
Mounting Type
Surface Mount
Package / Case
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package
D2PAK-5
Base Product Number
NCV4276

Electronic components Linear Voltage Regulator IC Positive Adjustable 1 Output 400mA D2PAK-5 IC NCV4276BDSADJR4GElectronic components Linear Voltage Regulator IC Positive Adjustable 1 Output 400mA D2PAK-5 IC NCV4276BDSADJR4GElectronic components Linear Voltage Regulator IC Positive Adjustable 1 Output 400mA D2PAK-5 IC NCV4276BDSADJR4G

Electronic components Linear Voltage Regulator IC Positive Adjustable 1 Output 400mA D2PAK-5 IC NCV4276BDSADJR4GElectronic components Linear Voltage Regulator IC Positive Adjustable 1 Output 400mA D2PAK-5 IC NCV4276BDSADJR4G
